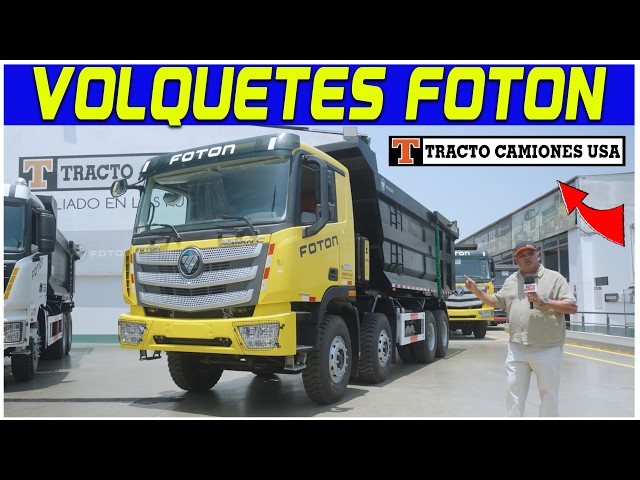

Home > Products > Dump Truck > Foton Auman 8×4 dump truck 80t LHD aggregate delivery Cummins Engine>
Market Price: from $56624 (NO include VAT)
Series: Auman EST
Usage scenario: mining haulage/quarry transport/construction earthmoving/aggregate delivery
Max Power: 400
Drive Type: 8X4
Wheelbase(mm): 1800+3300+1400
Engine/Battery: Foton Cummins ISG 400
Transmission: Sinotruk HW23712 Iron (Q)
| Category | Details |
|---|---|
| Serial No. | 262 |
| Business | Heavy Truck |
| Function | Dump Truck |
| Sub-brand | GTL-E |
| Tonnage | 80T |
| Approved Model | BJ3319DPPKC-3 |
| Drive Type | 8×4 |
| Wheelbase | 1800+3300+1400 mm |
| Overall Vehicle (Chassis) Dimensions | 9600/9900×2495×3580 mm |
| Upper Structure Configuration | Rectangular / U-shaped bucket, 6800×2300×1500 mm, Q345 steel plate, bottom 8 mm side 6 mm, HYVA cylinder |
| GCW | 80000 kg |
| Body Width | 2490 mm |
| Roof Height | Flat Roof |
| Left/Right Hand Drive | Left Hand Drive |
| Seating Capacity | 2 |
| Fuel Type | Diesel |
| Engine | ISG 400 |
| Engine Manufacturer | Cummins |
| Displacement | 11800 cc |
| Emission Standard | No Emission |
| Power / RPM (kW / PS) | 294 kW / 400 PS @ 1900 rpm |
| Engine Torque (Nm / rpm) | 2100 Nm @ 1000 rpm |
| Transmission Model | HW23712 Iron (Q) |
| Transmission Manufacturer | Sinotruk |
| Front Axle Capacity | 9T |
| Middle/Rear Axle Capacity | 16T |
| Drive Axle Ratio | 5.26 |
| Brake Type | Air Brake |
| Braking Mechanism | Front Drum Rear Drum |
| Brake Control System | ABS |
| Tire Model | 13R22.5 18PR Mixed / Drive |
| Number of Tires | 13 |
| Steering Gear | AM105L-S |
| Fuel Tank Capacity | 350L Aluminum Alloy |
| Suspension Type | Leaf Spring |
| Leaf Spring Count | 11, 11, 14 |
| Frame Cross-Section (mm) | 225/320×90×(8+7) |
| Standard Air Conditioning | Automatic Air Conditioning |
| Standard Infotainment System (incl. radar) | MP3 + Radio + USB + No Radar |
| Standard Body Assembly (Seats, Doors/Windows, Mirrors) | Power Windows + Central Locking + Remote Lock + Five-in-One Lock + Airbag Seat (standard) + Manual Mirrors |
| Fifth Wheel | None |
| Optional Bumper | Small bumper |
| Satellite Positioning Device | Optional |
| Battery (Ah) | 165 |
| Wheel Cover Optional | None |
| Air Filter Type Optional | Desert air filter |
The Auman GTL-E 80-ton 8×4 dump truck is a true heavy-duty champion engineered for the most demanding mining and construction sites. Powered by the Cummins ISG 400 engine delivering 400 PS and massive 2100 Nm of torque, combined with robust transmission and 8×4 drive configuration, this dump truck provides unmatched traction and stability even when fully loaded with 80 tons.
Its large 6800×2300×1500 mm heavy-duty bucket (bottom 8 mm, side 6 mm, Q345 steel) with HYVA cylinder ensures fast and reliable unloading. Reinforced multi-leaf suspension, 13 heavy-duty tires and strong frame make it perfect for intensive mining haulage, quarry transport, large-scale construction earthmoving and high-volume aggregate delivery. The comfortable cab with automatic air conditioning, power windows and airbag seat keeps operators fresh during long working days of mining haulage and quarry transport.
Choose this Auman dump truck to achieve faster cycle times, lower cost per ton, higher daily output and superior reliability in construction earthmoving and aggregate delivery operations every single day.
