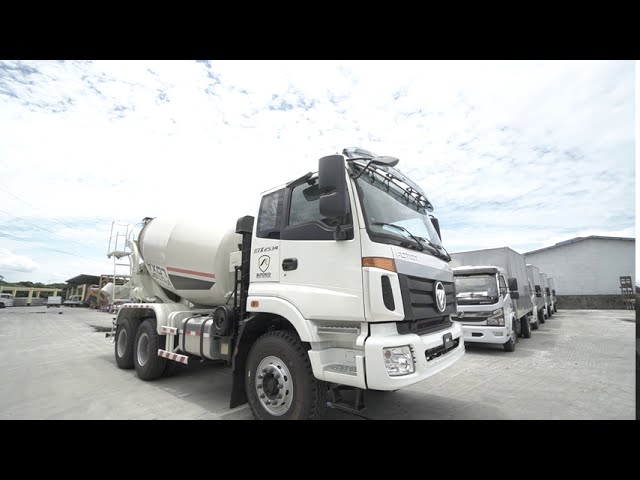

Home > Products > Special truck > Foton Auman 6x4 340rpm 8, 000L cement Mixer Truck agitating lorry
Market Price: from $21,000
Series: GTL/EST
Usage scenario: cement mixer/Mixer Truck/agitator truck/ agitating lorry/mixer car
Max Power: 340
Drive Type: 6×4
Wheelbase(mm): 3575 + 1350
Engine/Battery: Weichai WP10.340E32
Transmission: Fast 10JSD160T/Iron
Basic Project | Name | Description |
Basic Information | Drive Type | 6×4 |
Steering Wheel Position | Left-hand Drive | |
Chassis Status | ETX-2490 | |
Chassis Dimensions | Wheelbase (mm) | 3575 + 1350 |
Length (mm) | 8165 | |
Width (mm) | 2495 | |
Height (mm) | 3005 | |
Vehicle Weight Parameters | Curb Weight of Chassis (kg) | 9950 |
Maximum Designed Total Mass (kg) | 25000 | |
Trailer Total Mass (kg) | 38000 | |
Vehicle Performance Parameters | Top Speed (km/h) | 75 |
Maximum Gradeability (%) | 30 | |
Cab | Body Model | ETX-2490 |
Seating Capacity | 2 | |
Engine | Engine Model | WP10.340E32 |
Displacement (L) | 9.726 | |
Engine Power (ps/rpm) | 340 | |
Maximum Torque (Nm/rpm) | 1500/1200-1500 | |
Brand | Weichai | |
Emission Standard | Euro III | |
Clutch | Clutch Type | Ф430 Single-Disc Pull-Type Membrane Spring |
Transmission | Gearbox Model | 10JSD160T/Iron |
Gearbox Brand | Faw Sichuan FAW Special Vehicles Co., Ltd. | |
Suspension | Number of Front Leaf Springs | 10 |
Number of Rear Leaf Springs | 12 | |
Front Axle | Front Axle Load Capacity | 7.5T |
Front Axle Type | Drum Brake | |
Rear Axle | Gear Ratio, Load Capacity | 4.8/16T |
Rear Axle Type | Drum Brake | |
Tires | Tire Model | 12.00R20 |
Number of Tires | 10+1 | |
Frame | Outer Width | Uniform Width: 865 |
Longitudinal Beam Cross-section | 243/320 × 90 × (8+7) | |
Chassis Plate Thickness | 8+7 | |
Steering Gear | Steering Gear Model | AM90L-S |
Fuel Tank | Fuel Tank Capacity & Material | 350L Aluminum Alloy |
Upper Equipment | ||
Upper Equipment | Volume | 8m³ |
Material | T510 | |
Thickness | 5mm | |
Hydraulic Pump | T90-R-075 | |
Hydraulic Motor | T90-M-075 | |
Reducer | PMB6.5 | |
FOB Price | $60,000-$70,000 |
The Foton Auman 6x4 340rpm 8,000L cement mixer is a powerhouse designed for demanding construction projects. With its robust 6×4 drive configuration and advanced hydraulic system, this Mixer Truck ensures optimal performance in even the toughest terrains. Its 8-cubic-meter drum capacity, crafted from high-strength T510 steel, guarantees durability while maintaining lightweight efficiency.
Powerful Engine: Equipped with a Weichai WP10.340E32 engine delivering 340 PS at 1200-1500 rpm, this agitator truck offers unmatched torque for heavy-duty operations.
Superior Stability: The 3575 + 1350 mm wheelbase and reinforced chassis ensure stability during transit, making it ideal for long-distance hauling as an agitating lorry .
Efficient Hydraulics: The T90-R-075 hydraulic pump and PMB6.5 reducer enable smooth drum rotation, ensuring consistent concrete mixing quality.
Versatile Design: The left-hand drive cab with ETX-2490 body model provides excellent visibility, while the 350L aluminum alloy fuel tank extends operational range.
This mixer car is engineered to meet Euro III emission standards, combining environmental responsibility with productivity. Its maximum gradeability of 30% and 75 km/h top speed make it adaptable to diverse job sites. Whether transporting ready-mix concrete or operating in urban environments, the Foton Auman delivers reliability and cost-effectiveness.
With its competitive FOB price range of $60,000–$70,000, the Foton Auman 6x4 cement mixer represents a smart investment for contractors seeking a blend of power, efficiency, and affordability. Contact us today to explore customization options for your fleet.
