Home > Products > Dump Truck > Auman GTL Heavy-Duty Truck 6×4 55T Box Dump Truck/slag truck/miner's truck For Peru
Market Price: from $45,550
Series: Auman GTL
Usage scenario: slag truck/miner's truck/bogie truck
Max Power: 460
Drive Type: 6×4
Wheelbase(mm): 3575+1350
Engine/Battery: Foton Cummins ISG12
Transmission: Fast 12JSDX240T(Q)Iron
Business | Heavy-duty Truck (H1) |
Brand | Auman |
Function | Dump Truck |
Platform | GTL |
Tonnage / Boom Length | 55T |
Drive | 6×4 |
Engine | ISG12 |
Transmission | F-12MT |
Announcement Model | BJ3259DLPKB-A1 |
Sales Country | Peru |
Covered Countries | Peru |
Status | Complete Vehicle |
Drive Form | 6×4 |
Wheelbase | 3575+1350 |
Overall Dimensions of Vehicle (Chassis) | 8290×2490×3400 |
Inner Dimensions of Cargo Box | 5600 (5400) ×2300×1100 |
GVW | 55000 |
GCW | / |
Body Width | 2490 |
Roof Height | Flat Roof |
Left/Right Hand Drive | Left Hand Drive |
Cab Status | / |
Number of Seats (Passenger Capacity) | 2/3 |
Fuel Type | Diesel |
Engine | ISGe4-460 |
Engine Manufacturer | Foton Cummins Engine |
Displacement | 11800 |
Emission | Euro Ⅳ |
Emission Route | SCR |
Power/Speed (Horsepower) kw/ps(r/min) | 460 |
Engine Torque
(Nm/rpm) |
2300/1000-1300 |
Transmission Model | 12JSDX240T(Q)Iron |
Transmission Manufacturer | Fast |
Front Axle Load | 7.5T |
Middle/Rear Axle Load | 16T |
Drive Axle Ratio | 5.26 |
Brake Type | Air Brake |
Brake Form | Front Drum and Rear Drum |
Brake Control System | ABS |
Tire Model | 12R22.5 |
Number of Tires | 11 |
Steering Gear | ZF8098 |
Fuel Tank Capacity | 350L Aluminum Alloy |
Suspension Form | Leaf Spring |
Number of Leaf Spring Pieces | 9, 12 |
Frame Section/mm | 225/320×90×(8+7) |
Standard Air Conditioner | Manual Air Conditioner |
Standard Entertainment System (Including Radar) | MP3 + Radio + USB + No Radar |
Standard Body Combination (Seats, Doors and Windows, Rearview Mirrors) | Power Windows + Central Lock + Five Locks Unified + Airbag Seat (Standard) + Manual Rearview Mirror |
Engine Optional | 431/0 |
Body Combination Optional | D37/0 |
Transmission Optional | 025/0 |
Front Axle Optional | 75T/0 |
Middle and Rear Axle Optional | Q3/Q4/Q5/Q6/Q1/Q2 |
Tire Optional | ZC/Z8/XD/ZD/NA/ZL/Z7/XC/V6 |
Fuel Tank Optional | L35/0 |
Air Conditioner Optional | K/0 |
Entertainment System (Including Radar) Optional | MSW/0 |
Fifth Wheel | 0 |
Air Deflector | 0 |
Bumper Optional | XBT/0 |
Satellite Positioning Device | 0/J |
Upper Mounting | 000/00D |
Fuel Injection System | 0 |
Battery Optional | 165/0 |
Stabilizer Bar Optional | H/0 |
Wheel Guard Optional | 0 |
Air Filter Type Optional | SX/0 |
Independent Heat Source Optional | 0 |
Additional Equipment | 0 |

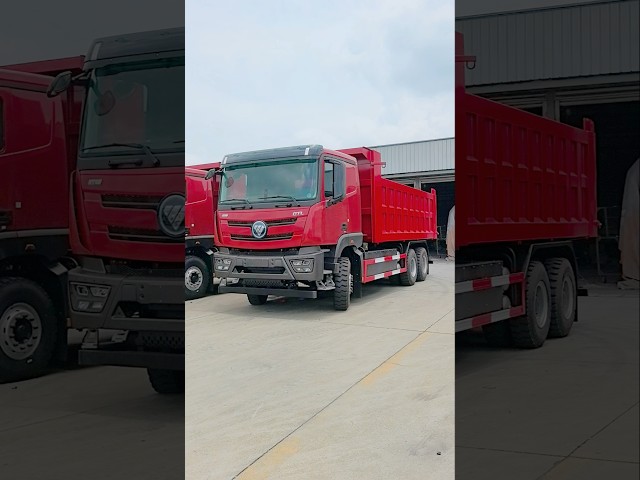

When precision, power, and reliability are non-negotiable, the Auman GTL 55T dump truck rises to the challenge. Engineered to excel as a miner's truck, slag truck, and versatile bogie truck, this 6×4 powerhouse is built to redefine productivity in Peru's most demanding industries.
As a miner's truck, it thrives in rugged terrain, thanks to its 55,000 kg GVW and robust 16T middle/rear axles—capable of hauling heavy ore with ease. Its 5600 (or 5400) ×2300×1100 mm cargo box offers flexible space, making it equally adept as a slag truck for efficient industrial waste removal. And with its durable 6×4 configuration, it stands out as a bogie truck that balances strength and maneuverability for diverse hauling tasks.
Under the hood, the Foton Cummins ISGe4-460 engine delivers 460 horsepower and a formidable 2300 Nm of torque (at 1000-1300 rpm), paired with a 12-speed Fast 12JSDX240T transmission. This dynamic duo ensures smooth acceleration even under full load, while the 5.26 drive axle ratio optimizes power distribution—critical for steep mine slopes or uneven construction sites.
Durability is woven into every component: a rugged frame with a 225/320×90×(8+7) mm section, 7.5T front axle, and leaf spring suspension (9, 12 pieces) withstand constant punishment. Safety is paramount too, with an air brake system featuring ABS and 12R22.5 tires that grip firmly on loose or wet surfaces.
Inside the flat-roof cab, comfort meets functionality. Drivers benefit from airbag seats, manual air conditioning, and an entertainment system with MP3, radio, and USB—small touches that make long shifts more manageable. The 350L aluminum fuel tank minimizes refuel stops, keeping your operations on track.
With optional upgrades like different axles, tires, and satellite positioning, the Auman GTL 55T adapts to your unique needs. Whether you're hauling minerals as a miner's truck, removing industrial byproducts as a slag truck, or tackling multi-purpose jobs as a bogie truck, this vehicle delivers consistent performance.
Ready to elevate your fleet? The Auman GTL 55T isn't just a truck—it's a commitment to efficiency, durability, and success in Peru's toughest work environments.
