Market Price: from $45600 (NO include VAT)
Series: AUV H7
Usage scenario: Tourist & Commuter Transport/Intercity Passenger Transport/Institutional Bus
Max Power: 141
Drive Type: 4X2
Wheelbase(mm): 4000
Engine/Battery: Cummins ISF3.8s5154
Transmission: ZF ZF6S500(manual)
| Basic specification | Driver location | LHD |
| Fuel | Diesel | |
| Exterior dimensions(mm) | 7300×2230×3030(with A/C) | |
| body structure | Chassis type | |
| Seat No.(max) | 26+1 | |
| G.V.W(T) | 6 | |
| Max. gross weight(T) | 8.5 | |
| Inner height(mm) | 1900 | |
| Min. turning radius(m) | ≤10 | |
| Front/rear overhang(mm) | 1150/2150 | |
| Approach/Departure angle(°) | 23/13 | |
| Wheelbase ( mm ) | 4000 | |
| Luggage compartment(m³) | 0.7 | |
| Min. ground clearance (mm) | 200 | |
| Max. speed | 110 | |
| Max. gradeability(%) | ≥35 | |
| Braking distance(V=30Km/h at full load)(m) | ≤10 | |
| Inner noise(50Km/H at constant speed) | ≤79 dB(A) | |
| Engine | Brand | Cummins |
| Model | ISF3.8s5154 | |
| Rated power(kw(PS)/rpm) | 105(141)/ 2600 | |
| Displacement(L) | 3.76 | |
| Emission | EURO V | |
| Chassis | Transmission Brand | ZF |
| Transmission Model | ZF6S500 | |
| Transmission Type | Manual | |
| Clutch | φ350, Chinese Brand | |
| Axle | Front 3T / rear 5.5T | |
| Suspension | Leaf spring Suspension | |
| Braking | Front & rear drum brake | |
| Steering | Integral power steering | |
| Tyre | 215/75R17.5 | |
| Spare tire | One | |
| Fuel tank capacity | 120L | |
| ABS | WABCO ABS | |
| Cooling system | Mechanical fan | |
| Interior and Exterior | Luggage rack | Single side luggage rack |
| Floor | Bamboo floor | |
| Floor leather | Anti-wear floor leather | |
| Cold wind pipeline | With | |
| Passenger seat | Luxury imitation leather seats | |
| Passenger seat No. | 26 | |
| Driver seat | Mechanical damping driver seat | |
| Front passenger door | Pneumatic external swing door | |
| Rear passenger door | Without, for option | |
| Driver door | With | |
| Driver window | Sliding windows | |
| Side-window | Sliding window | |
| Front windshield | Laminated glass | |
| Rear windshield | Tempered glass | |
| Luggage compartment door | Upturning aluminum door | |
| Exterior rear-view mirror | Rod rearview mirror | |
| Safety board | With | |
| Side curtain | With | |
| Sun-visor | Single manual sun-visor | |
| Top windshield | One, without ventilation | |
| Electric Appliance | Visual and audio system | MP3, Radio |
| Light and signal system | Two Load lamps | |
| Charging port | USB charging port in driving area | |
| Electronic clock | With | |
| Dashboard | Ordinary dashboard | |
| A/C | Air-conditioner | Songz SZGZ-I/F-D |
| Refrigerating capacity | 15480 kcal | |
| Compressor | Aoke compressor | |
| Defroster | With | |
| Heating system | Fuel-fired independent water heating system with 3 floor-mounted radiators | |
| Safety & Paint | Fire extinguisher | With |
| Safety hammers | Anti-theft alarm safety hammers | |
| Paint | Ordinary paint | |
| Automatic fire extinguishing device in the engine compartment | With | |
| Engine compartment temperature alarm device | With |

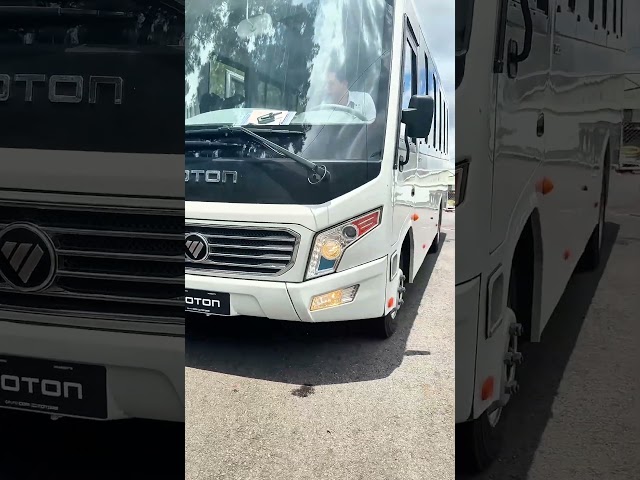

In the world of commercial transportation, versatility is the key to profitability. Our latest 7.3-meter diesel coach is engineered to be the backbone of your fleet, specifically designed to excel in Tourist & Commuter Transport. Powered by a world-renowned Cummins engine and a precision ZF 6-speed manual transmission, this vehicle delivers a seamless blend of power and fuel economy that ensures your business stays ahead of the curve.
Whether you are managing a high-end travel agency or a corporate fleet, this bus provides the perfect platform for Tourist & Commuter Transport. Its 26+1 seating capacity, featuring luxury imitation leather seats and a high-performance Songz air-conditioning system, guarantees that every passenger enjoys a first-class experience, regardless of the distance.
For operators focusing on Intercity Passenger Transport, the value lies in the heavy-duty chassis and Euro V emission compliance. With an 8.5-ton maximum gross weight and a 120L fuel tank, this bus is built to handle the rigors of Intercity Passenger Transport with minimal downtime and maximum efficiency. The inclusion of WABCO ABS and an automatic engine fire extinguishing system provides the peace of mind that safety is never compromised.
Beyond commercial routes, this vehicle serves as an ideal Institutional Bus for schools, government agencies, and hotels. Its compact 7.3-meter length and tight turning radius make it incredibly agile in urban environments, allowing it to function as a premium Institutional Bus for VIP shuttles or campus movements. The bamboo flooring and anti-wear leather interior ensure the cabin remains pristine even after years of heavy use.
Invest in a vehicle that works as hard as you do. From local shuttles to cross-regional journeys, this coach is the reliable partner your transportation business deserves.
