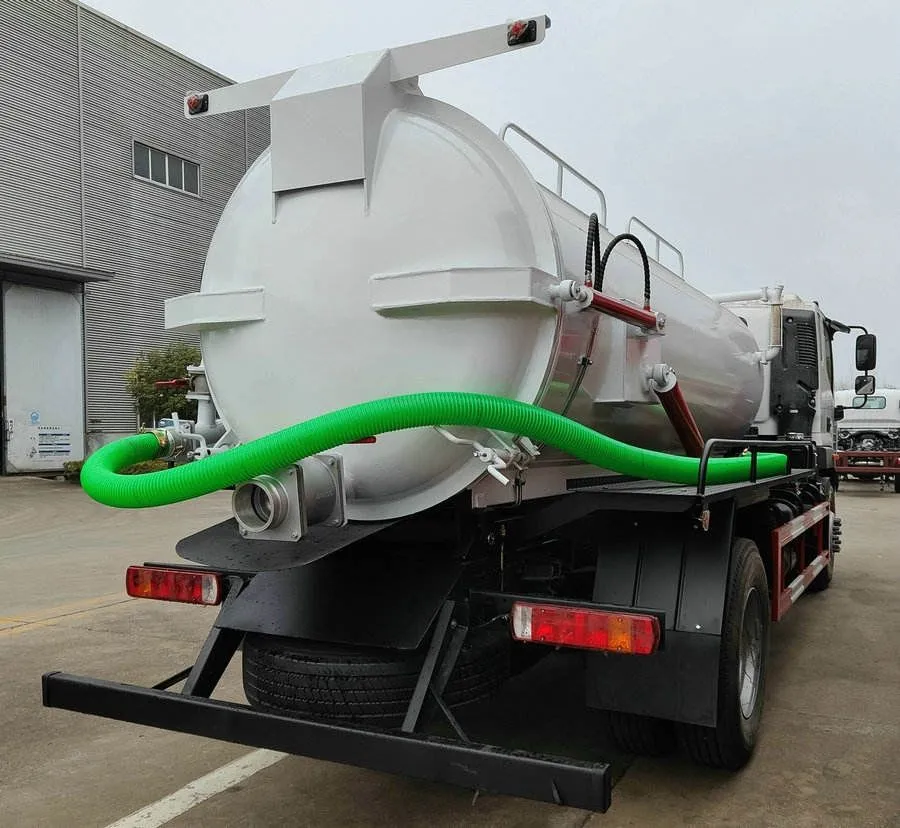

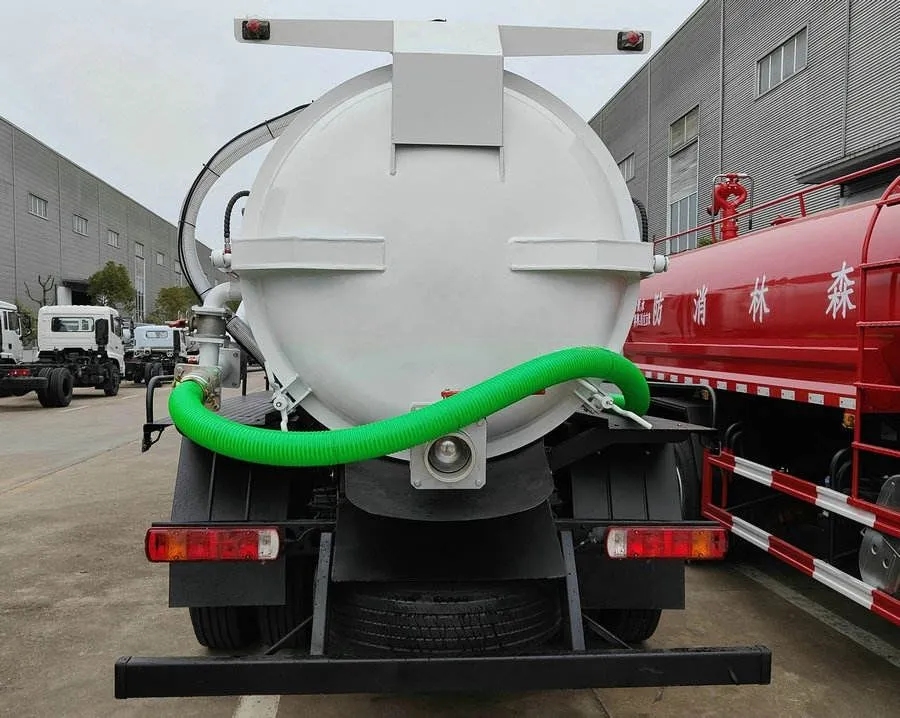

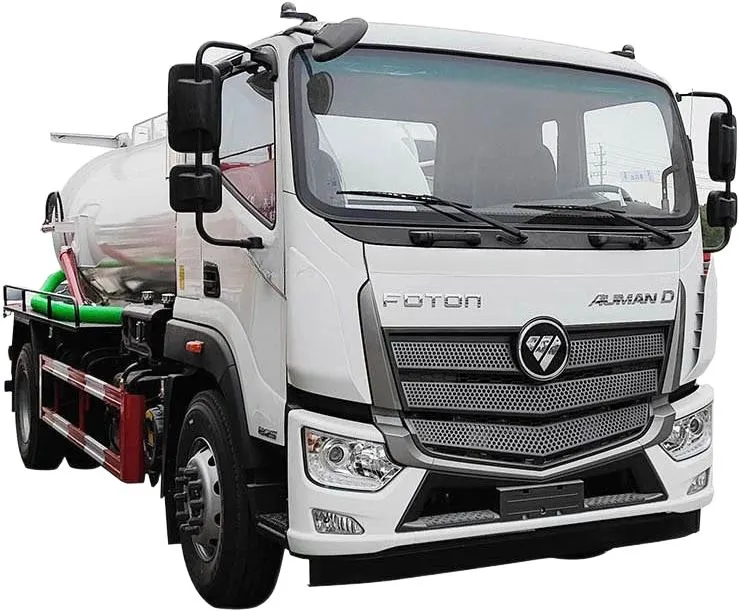

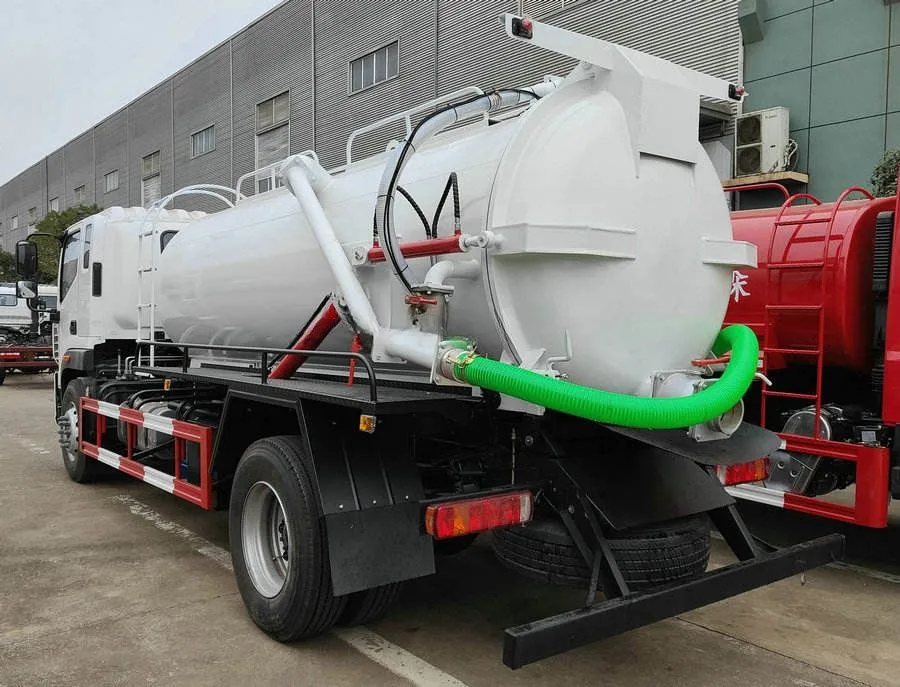

The modernization of public works and municipal sanitation infrastructure in developing markets requires machinery of unmatched ruggedness, high volumetric efficiency, and extreme mechanical simplicity. The Foton Aumark EST-M 22T heavy-duty sanitation vehicle represents a landmark in special-purpose logistics engineering, designed from the tires up to deliver consistent performance under extreme climatic stress. Built upon the robust Foton BJ1226VMPHG-1 chassis, this high-performance vehicle integrates a 10m³ cylindrical waste container with a heavy-duty suction system, creating a versatile asset capable of performing professional septic tank cleanout duties across municipal, industrial, and agricultural sectors. When commercial operators and municipal planning fleets invest in equipment destined for regions like East Africa, the primary factors determining ROI are mechanical reliability in remote zones, tolerance for varying fuel qualities, and superior tank durability. This heavy-duty truck addresses each of these critical requirements, establishing itself as the premier choice for regional waste management campaigns.
The operational resilience of this special-purpose vehicle begins with its state-of-the-art chassis platform. Foton's EST-M medium-to-heavy platform has earned global acclaim for its superior steel composition, wide-profile frame, and heavy-duty suspension characteristics. Featuring a 4800 mm wheelbase and an overall dimension profile of 8255 mm by 2460 mm by 2820 mm, the truck achieves a remarkable geometric balance between massive high-density payload capacity and urban maneuverability. Navigating through narrow public alleyways or unpaved rural roadways is a routine challenge in regional operations, and the 4×2 drive configuration combined with an optimized steering geometry allows the operator to execute tight turns safely. With a certified Gross Vehicle Weight (GVW) of 22,000 kg, the frame is engineered using a reinforced double-layer steel chassis structure with a cross-section of 250 mm, providing immense torsional rigidity that resists bending or deformation under high-capacity static or dynamic loads.
A vehicle's ability to survive in environments like South Sudan depends fundamentally on its powertrain engineering. While Western and highly regulated European markets have transitioned to complex Euro V and Euro VI common-rail diesel engines with sensitive exhaust aftertreatment systems, these advanced units are highly incompatible with the high-sulfur diesel fuel and particulate-rich environment common in East Africa. The Yuchai YC6A240-33 Euro II diesel engine equipped on this Foton chassis is a masterpiece of mechanical simplicity and fuel tolerance. With a massive displacement of 7225 cc, this 6-cylinder inline water-cooled engine generates a robust 240 horsepower (177 kW) and a formidable torque output of 900 N.m. By avoiding delicate electronic exhaust sensors, Diesel Particulate Filters (DPF), and Selective Catalytic Reduction (SCR) urea dosing systems, this mechanically controlled engine operates with absolute reliability on local diesel fuel. This ensures that the truck avoids sudden electronic engine derating or sensor-induced shutdowns in remote locations, keeping the fleet active where other high-emission vehicles fail.
To translate the immense torque of the Yuchai engine into efficient traction, the chassis utilizes the globally renowned Fast 8JS105TA manual transmission. Manufactured by Fast Gear, a dominant global authority in heavy-duty commercial gearboxes, this synchronized transmission offers 8 forward speeds and a highly progressive shift pattern. The wider gear ratios at the lower end allow the vehicle to generate massive crawler-grade tractive effort, enabling the loaded truck to climb out of muddy disposal pits, unpaved sewage processing facilities, or wet landfill zones without clutch slippage or engine stalling. On the highway, the overdrive gear allows the engine to run at low RPMs, optimizing fuel economy and extending the service life of the internal components. The mechanical energy is delivered to a heavy-duty 5.5-ton front axle and a reinforced 10-ton rear drive axle with a highly calculated ratio of 4.875, ensuring superior load distribution and gradeability.
The heavy-duty nature of the suspension is designed to handle the variable weight of a fully loaded 10,000-liter sewage container. The truck features a multi-leaf spring configuration, with 10 heavy leaf springs supporting the front axle and a dual-stage 10+8 leaf spring system supporting the rear drive axle. This robust configuration absorbs severe road shocks from unpaved gravel roads, preventing vibrations from propagating into the chassis frame and upper vacuum machinery. The 11R22.5 tubeless radial tires are matched to heavy steel rims, providing low rolling resistance and outstanding thermal dissipation. Under the tropical heat of South Sudan, tubeless tires run significantly cooler than standard tube-type tires, which minimizes the risk of sudden tire blowouts during long-distance waste haulage. Standard safety equipment includes a dual-circuit air braking system with a front and rear drum mechanism, managed by a reliable Anti-lock Braking System (ABS) for maximum stopping power in high-load scenarios.
The high-performance capabilities of the upper waste-handling structure are built to match the industrial standards of the chassis. The 10 cubic meter waste container is fabricated in a cylindrical single-tank geometry, which represents the optimal structural form for distributing both negative vacuum pressure and positive gravity discharge pressure. The tank shell is welded using high-tensile 5mm thick Q235 structural carbon steel, known for its excellent weldability, impact resistance, and long-term elasticity. To reinforce the structure against the intense pressure differential during high-vacuum operations, the front and rear dish heads are constructed from 6mm thick Q235 steel, cold-formed to a precise radius. The interior of the tank is reinforced with two 5mm Q235 steel anti-wave baffles. These internal bulkheads are strategically positioned to break up the kinetic momentum of the liquid sewage during rapid braking or sudden steering adjustments, neutralizing the fluid sloshing effect that could otherwise destabilize the entire vehicle and cause severe rollover risks.
The operational heartbeat of the waste containment system is a high-volume, domestic top-tier vacuum suction pump. This pump is mechanically coupled to the chassis transmission through a heavy-duty Power Take-Off (PTO) system, allowing direct mechanical power transfer from the 240 HP Yuchai engine to the vacuum pump rotors. Generating an impressive suction speed of 1000 to 1200 liters per minute, this system creates a deep vacuum within the tank body, enabling the complete vacuum loading of 10,000 liters of liquid waste in less than 10 minutes (≤10 min). With an effective suction lift capability exceeding 6 meters (≥6m) and backed by an 8-meter heavy-duty rubberized suction hose, this truck can easily perform deep grease trap cleaning operations in municipal commercial areas or empty deep septic vaults in industrial complexes. The mechanical vacuum pump is protected by a dual-stage safety system, including a secondary moisture separator and a highly responsive stainless steel float-ball anti-overflow valve. When the liquid level in the tank reaches its maximum design capacity, the stainless steel ball rises to seal the suction intake, protecting the pump from water ingress and instantaneous hydraulic lock.
The structural integration between the chassis frame and the cylindrical waste container is achieved through a heavy-duty subframe constructed entirely from Q345 manganese steel. Q345 steel offers vastly superior yield strength compared to standard mild steel, providing a highly flexible and crack-resistant mounting bed that accommodates the torsional flexing of the truck frame as it travels over unpaved, uneven roads. For fast and efficient waste disposal, the tank utilizes a dual-cylinder hydraulic tipping system. Two high-pressure hydraulic cylinders mounted at the front of the subframe elevate the tank to a steep tipping angle, allowing high-viscosity sediment and heavy sludge to slide out rapidly. The rear dish head is designed as a fully swinging door, secured and compressed against a thick chemical-resistant rubber gasket by two independent hydraulic locking cylinders. This hydraulic sealing mechanism guarantees a 100% leak-proof and odor-free seal during transit, protecting the public from biological hazards and satisfying strict environmental regulations.
The design of the operator interface emphasizes ease of use, mechanical durability, and total independence from complex electronic control modules. In remote locations, the breakdown of an electronic circuit or a micro-sensor can completely disable a vehicle. To prevent such failure points, this truck utilizes a purely mechanical 2-spool manual multi-way valve to control the hydraulic tipping and rear-door-locking cylinders. The robust levers are mounted on the side of the subframe, allowing the operator to adjust the hydraulic flow rate with tactile precision. To monitor the internal liquid volume during suction operations, a heavy 6mm thick plexiglass sight tube is installed on the rear dish head. This sight tube provides an instant, high-visibility physical indication of the fluid level, preventing accidental overfills and allowing the operator to manage loading cycles efficiently. The tank top is equipped with dual-sided safety handrails and anti-slip walking steps, ensuring a secure environment for operators who must access the top hatch for inspection.
The commercial utility of this specialized truck extends far beyond standard waste transportation, making it an indispensable asset for comprehensive municipal sanitation and infrastructure maintenance. One of its most vital and frequent deployment roles is in professional municipal sewer desilting. Over time, storm drains and underground sewer lines accumulate massive quantities of heavy gravel, mud, sand, and compacted debris. This build-up severely restricts water flow and causes localized flooding during heavy rainstorms. Operating with its high-displacement vacuum suction pump, the vehicle generates sufficient negative pressure to extract thick silt and stones from deep underground catch basins, restoring the full capacity of the public drainage network and protecting residential properties from sewage backup. This capability makes the truck a core tool for municipal departments tasked with keeping city streets clean and dry.
In addition to municipal drainage maintenance, the high volume and chemical durability of the Q235 steel tank make the truck highly suitable for heavy-duty industrial liquid waste transport. Manufacturing facilities, chemical processing plants, oil-gas refineries, and remote mining camps generate thousands of gallons of hazardous or non-hazardous chemical wastewater, drilling mud, and industrial sludge daily. This waste must be safely extracted from settling ponds and transported to certified treatment plants. The 5mm thick carbon steel construction of the tank, combined with the extreme chemical resilience of the rubber steel wire reinforced hydraulic hoses and sealing gaskets, allows the truck to load, transport, and discharge these challenging chemical by-products safely without leakage or structural degradation. The reliability of this process is critical for industrial operators who must comply with stringent national environmental protection laws.
Furthermore, the extreme weather patterns brought by tropical rainy seasons often demand rapid emergency response capabilities from municipal fleets. During these periods of torrential downpours, low-lying urban areas, hospital basement parking structures, and construction sites can experience rapid water accumulation, threatening lives and infrastructure. The Foton vacuum truck serves as an outstanding asset for high-speed emergency flood drainage. By placing the 8-meter heavy-duty suction hose into the flooded zones, the high-speed vacuum pump can evacuate large quantities of standing water and muddy debris at a rate of 1200 liters per minute. The water is vacuumed into the 10,000-liter tank, transported to safe drainage outlets, and rapidly discharged, allowing emergency crews to stabilize flooded areas and resume critical public services quickly.
Another highly lucrative commercial application for this vehicle is in the commercial food service and hospitality industries. Large commercial kitchens, hotels, and food processing factories are required by municipal laws to install grease traps to prevent fats, oils, and grease (FOG) from entering the public sewage network and solidifying into massive blockages. Over time, these grease traps accumulate thick layers of solid grease and organic waste that must be pumped out regularly. Performing a professional grease trap cleaning is a challenging task that requires a vacuum pump with exceptional negative pressure to break up and suction out the thick, cohesive grease layers. This truck's high-speed vacuum system liquefies and extracts these tough grease deposits, while the sealed rear door ensures that foul odors are completely contained during transport through busy commercial zones, protecting the business's public reputation.
The absolute reliability of the mechanical systems on this vacuum truck ensures a low total cost of ownership (TCO) and high resale value. By using standard components like the Fast 8-speed gearbox and Yuchai engine, fleet managers can purchase spare filters, clutch plates, and brake shoes from local markets, eliminating long wait times for imported components. The heavy-duty suspension, tubeless tires, manual windows, and durable mechanical controls are built to survive the extreme dust and heat of developing nations. This robust engineering makes the vehicle a highly sought-after commodity in the second-hand truck market throughout East Africa. It provides the owner with an exceptional exit strategy and high capital preservation, making it a highly profitable commercial investment.
Municipal networks and private sanitation contractors who rely on this truck also benefit from the dual-cylinder hydraulic tipping system, which allows the vehicle to double as a gravity discharge tanker for rapid disposal. The rear dish head features a manually operated inlet port and a separate manually controlled discharge port, allowing the vehicle to be connected directly to external processing manifolds or agricultural discharge lines. This versatility ensures that whether the operator is performing a routine septic tank cleanout, executing a massive municipal sewer desilting campaign, managing industrial liquid waste transport, responding to an urgent call for emergency flood drainage, or servicing a commercial grease interceptor, the Foton Aumark EST-M 22T vacuum sewage truck delivers unrivaled efficiency and profitability under all operating conditions.
