Basic Information | |
---|---|
Brand | Foton |
Sub-brand | Foton Aumark Series 5 |
Announcement Model | BJ1126VGPFG-F2 |
Vehicle Classification | N3 class (load capacity12 tons) |
Emission Standard | Euro V |
Wheelbase (mm) | 4800 |
Powertrain System | |
Engine Manufacturer | Beijing Foton Cummins Engine Co., Ltd. |
Engine Model | ISF4.5S5185 |
Displacement (L) | 4.5 |
Power (kW) | 136 |
Torque (N·m) | 700 |
Fuel Injection System | BOSCH |
Transmission System | |
Gearbox Model | ZF |
Gearbox Type | automatic |
Clutch Type | Single Dry Diaphragm Spring + Air-Assisted Hydraulic Operation |
Chassis & Suspension | |
Front Axle Load (T) | 3.6T |
Rear Axle Load (T) | 8.0T |
Rear Axle Structure | Stamping & Welded Integral Housing |
Suspension Type (Front/Rear) | Non-independent Longitudinal Leaf Spring (3 front blades + 4+3 rear blades) |
Braking System | |
Brake Type (Front/Rear) | Drum Air Brake |
Auxiliary Brake | Exhaust Brake |
Body Parameters | |
Vehicle Dimensions (L×W×H) (mm) | 8250×2350×2700 |
Cargo Deck Height (mm) | 1065 |
Maximum Speed (km/h) | 100 |
Kerb Mass (kg) | 4240 |
Application Scenarios | |
Main Purpose | Urban logistics, Express delivery, Engineering material transportation |

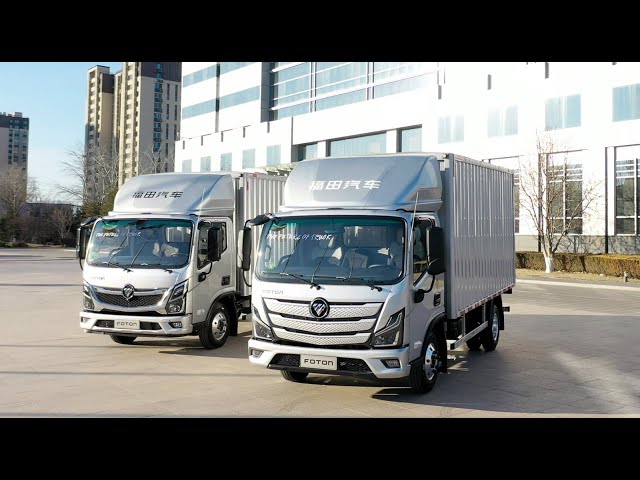

Engineered for efficiency and built for durability, the Foton Aumark Series 5 (Model: BJ1126VGPFG-F2) is the ultimate companion for **Urban logistics** and **Express delivery** demands. With a gross vehicle weight of 12,000 kg and a robust 4.5L Foton comins engine delivering 136kW of power, this N3-class medium truck combines strength with precision to tackle today’s toughest delivery challenges.
With a top speed of 100 km/h and a semi-extended cab design, the Aumark Series 5 balances rapid delivery timelines with driver comfort. The non-independent longitudinal leaf spring suspension (3 front blades + 4+3 rear blades) ensures stable handling on uneven surfaces, whether navigating construction zones or rural routes [[2]][[4]].
Whether you're scaling **Express delivery** operations or optimizing last-mile solutions for **Urban logistics**, the Foton Aumark Series 5 is your gateway to higher productivity and lower operational costs. Contact us today to discover how this truck can redefine your fleet’s success!
