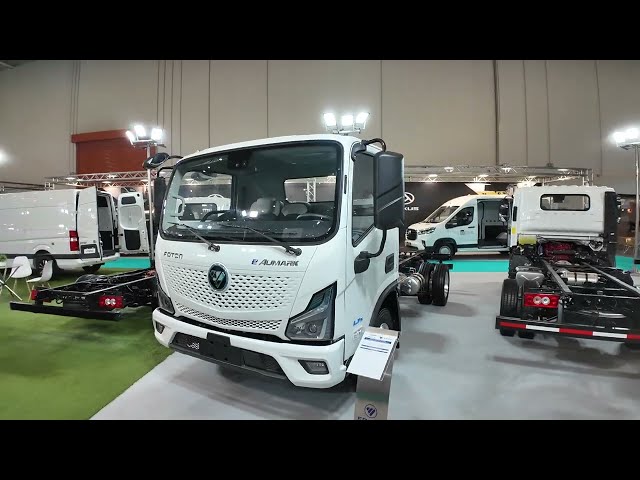

video of Foton ELE4 eAumark Refrigerated truck chassis 4x2 electric truck Ukraine European Standard Charging
Foton ELE4 eAumark Refrigerated truck chassis 4x2 electric truck Ukraine European Standard Charging
Foton ELE4 eAumark Refrigerated truck chassis 4x2 electric truck Ukraine European Standard Charging
Foton ELE4 eAumark Refrigerated truck chassis 4x2 electric truck Ukraine European Standard Charging
Foton ELE4 eAumark Refrigerated truck chassis 4x2 electric truck Ukraine European Standard Charging
Foton ELE4 eAumark Refrigerated truck chassis 4x2 electric truck Ukraine European Standard Charging
Foton ELE4 eAumark Refrigerated truck chassis 4x2 electric truck Ukraine European Standard Charging
Foton ELE4 eAumark Refrigerated truck chassis 4x2 electric truck Ukraine European Standard Charging

Foton ELE4 eAumark Refrigerated truck chassis 4x2 electric truck Ukraine European Standard Charging

Market Price: from $37000 (NO include VAT)

Series:

Usage scenario: electric truck, urban delivery, market transport, light logistics, last-mile delivery

Max Power: 204

Drive Type: 4X2

Wheelbase(mm): 2800

Engine/Battery: CATL Lithium Iron Phosphate

Transmission: None

truck inspection
factory visiting
Category Details
Product Platform ELE4-7.5T
Body Width and Form 2060 Single Row
Drive Form 4×2
Permitted Occupants 3
Steering Wheel Position Left Hand Drive
Gross Vehicle Weight 7480 kg
Curb Weight - Class II Chassis 3015 kg
Overall Dimensions (Chassis) 5435×2250×2280 mm
Wheelbase 2800 mm
Track (Front/Rear) 1780/1720 mm
Front/Rear Overhang 1120/1515 mm
Minimum Ground Clearance 160±15 mm
Maximum Speed 90 km/h
Maximum Gradeability 25%
Minimum Turning Diameter ≤12 m
Acceleration Time (0-50 km/h) 7.7 s
Working Condition C-WTVC
Speed Type Variable Speed
Test Load 8500 kg
Driving Range (C-WTVC, 25℃) 180 km
Driving Range - Actual Test 186 km
Energy Consumption 537 Wh/km
Slow/Fast Charging Time (SOC 20%-100%) 5/1 h (25℃)
Motor Type Permanent Magnet Synchronous Motor
Motor Model FTTBP150A
Rated Power / Peak Power 75/150 kW
Rated Torque / Peak Torque 250/560 N·m
Motor Rated/Peak Speed 12000 rpm
Motor Category Electric Drive Axle
Single Reduction Ratio 15.52
PEU Type FTIVT200
PEU Integrated Unit MCU, DCDC, PDU
PEU Working Voltage 540 V
PEU Maximum Current 400 A
PEU Upper Assembly Rated/Peak Power 15/30 kW
Power Battery Manufacturer CATL
Power Battery Cell Material Lithium Iron Phosphate
Power Battery Capacity 100.46 kWh (Dual Pack)
Power Battery Voltage 502.32 V
Power Battery Weight 660 kg
Power Battery Cooling Type Liquid Cooling
Power Battery Arrangement Arranged on Both Sides of Frame
Charging Method European Standard Fast/Slow Charging
Slow Charging Power 22 kW
BMS Maximum Charging Power 100 kW
Charging Socket Type European Standard CCS2
Front Axle Type Forged I-beam
Front Axle Rated Load 3 t
Rear Axle Form Electric Drive Axle
Rear Axle Rated Load 6 t
Main Reduction Ratio 15.52
Frame Outer Width 860/800 mm
Frame Longitudinal Beam Section 214 mm
Frame Structure Riveted
Front Suspension Non-independent Longitudinal Leaf Spring
Front Leaf Spring Count 3
Front Stabilizer Bar Yes
Rear Suspension Non-independent Longitudinal Leaf Spring
Rear Leaf Spring Count 4+2
Steering Gear Type Recirculating Ball Type
Assist Form Electric Power Steering
Adjustable Steering Column Yes
Energy-absorbing Steering Column Yes
Multifunction Steering Wheel Yes
Standard Tire Model 215/75 R17.5
Number of Tires 6 (No Spare Tire)
Tubeless Yes
Aluminum Alloy Rim Yes
Brake Type Air Brake
Front Brake Type Disc
Rear Brake Type Disc
Parking Brake Form EPB
Brake Gap Automatic Adjustment Arm Automatic Adjustment
Whole Vehicle Voltage 24 V
Battery Capacity × Quantity 60Ah×2
Seat Fabric Knitted Seat
ABS Yes
EBS Yes
EBD Yes
EPB Yes
ESP Yes
AEBS Yes
ASR Yes
HSA Yes
LDWS Yes
TPMS Yes
Automatic Headlights Yes
Front Fog Lamps Yes
LED Daytime Running Lights Yes
MP5 Multimedia Yes
Reversing Image Yes
Reversing Radar Yes
Reversing Buzzer Yes
Bluetooth Yes
Cruise Control Yes
Power Windows Yes
Electric Adjustable Mirrors Yes
Electric Heated Mirrors Yes
Electric Air Conditioner Yes
ePTO Interface Yes
Door Not Closed Warning Yes

The ELE4-7.5T pure electric light truck is a modern, efficient and zero-emission solution designed for reliable daily commercial operations. With a large 100.46 kWh CATL dual-pack lithium iron phosphate battery, powerful permanent magnet synchronous motor delivering 150 kW peak power and 560 Nm peak torque, this electric truck offers strong performance, 180+ km real-world range and excellent 7.5 t load capacity for urban and regional freight needs.

Featuring a practical single-row cab for three, comprehensive safety systems including ABS, EBS, ESP, AEBS, ASR, HSA, LDWS and TPMS, electric power steering, power windows and electric air conditioning, it provides a comfortable and safe working environment. This versatile electric truck is ideal for efficient urban delivery, reliable market transport, practical light logistics and convenient last-mile delivery. Operators benefit from significantly lower operating costs, reduced noise and emissions, and higher daily efficiency during intensive urban delivery and market transport routes as well as light logistics and last-mile delivery applications.

Equipped with the European-standard CCS2 charging socket, 22 kW AC slow charge and 100 kW DC fast charge, the ELE4-7.5T electric truck is built for global commercial deployment. Choose it to modernize your fleet, achieve lower total cost of ownership, improve environmental performance and boost productivity through efficient urban delivery, reliable market transport, practical light logistics and convenient last-mile delivery.
